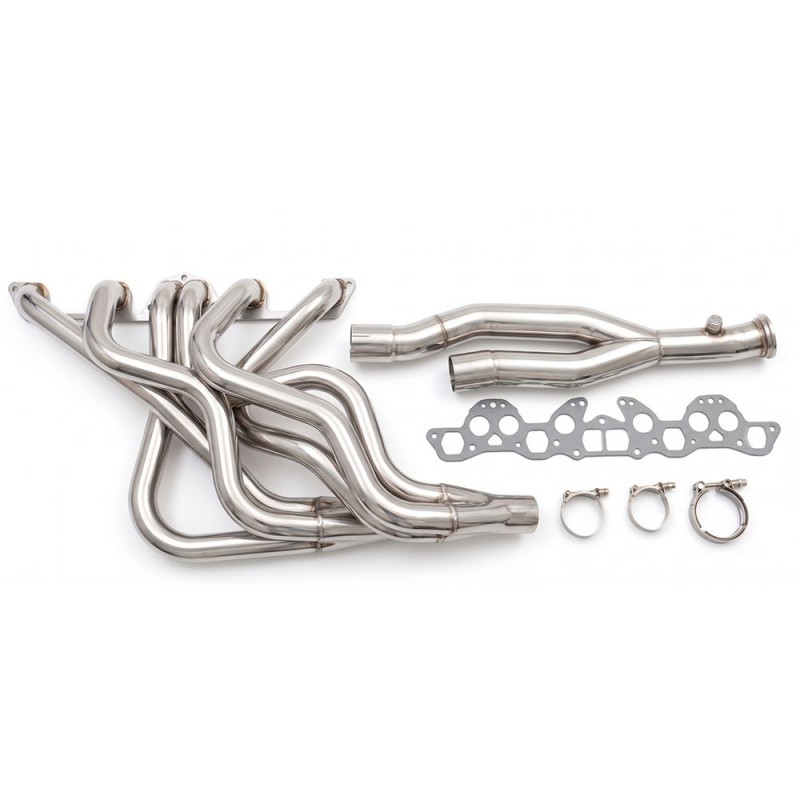

Collecteur inox "FULL RACE" ZStory (240Z 260Z 280Z)

Equal-length 6-2 primary pipes and rectangular ports.

⇒ The flange thickness is 15mm

⇒ The height of the manifold ports is 38mm

⇒ The width of the two inner ports is 35mm

⇒ The width of the 4x outer ports is 29mm

⇒ Primary pipes (42mm internal diameter) leading to 2x equal length secondary pipes of 60mm internal diameter each.

⇒ Single secondary end-pipe of 63mm fits directly onto the common exhaust line of 63mm (2.5’’).

⇒ Primary pipes = 920mm long, joining of each 3-1 at 700mm

⇒ Secondary pipe = two lengths of 680mm and 500mm

⇒ Overall length from engine head to single exhaust pipe = 1m40cm
